Features:1.Advanced BMS with current limiting function; 2.Long cycle life and service life;
3.Compatible with most inverters and chargers; 4.Low self discharge; 5.High energy intensity and conversion efficiency; 6.Easy wall-mounted installation; 7.Solid handles at both sides for carrying and moving; 8.Excellent high temperature performance; 9.Overcharge,over discharge and over temperature protection; 10.More compact volume and lighter weight; 11.Customization accepted; |
 |
|
Basic Parameters
|
|||
|
Voltage:
|
24V
|
Internal resistance:
|
≤100mΩ
|
|
Capacity:
|
100Ah(Standard )
|
Standard cycles:
|
≥3000(@0.5C,80%DOD,25ºC)
|
|
Energy:
|
2400Wh
|
Self discharge:
|
<5%(after 90 days storage)
|
|
Standard warranty:3 years(longer warranty according to customers)
|
|||
|
Size and weight
|
|
|
Height:375mm
|
Width:150mm
|
|
Length:371mm
|
Weight:25Kg
|
|
Electrical Parameters
|
|||
|

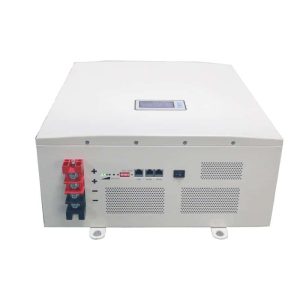

Communication ports
|
CAN/RS485/RS232
|
Compatible inverters
|
Growatt/Goodwe/Deye/Srne/Voltronic and others
|
|
Charging mode
|
CC/CV
|
Charging Current
|
0.2C/40A(Standard) 1C/100A(Maximum constant current@25ºC)
|
|
Overcharge protection voltage
|
28.8V
|
Discharge mode
|
CC/CV
|
