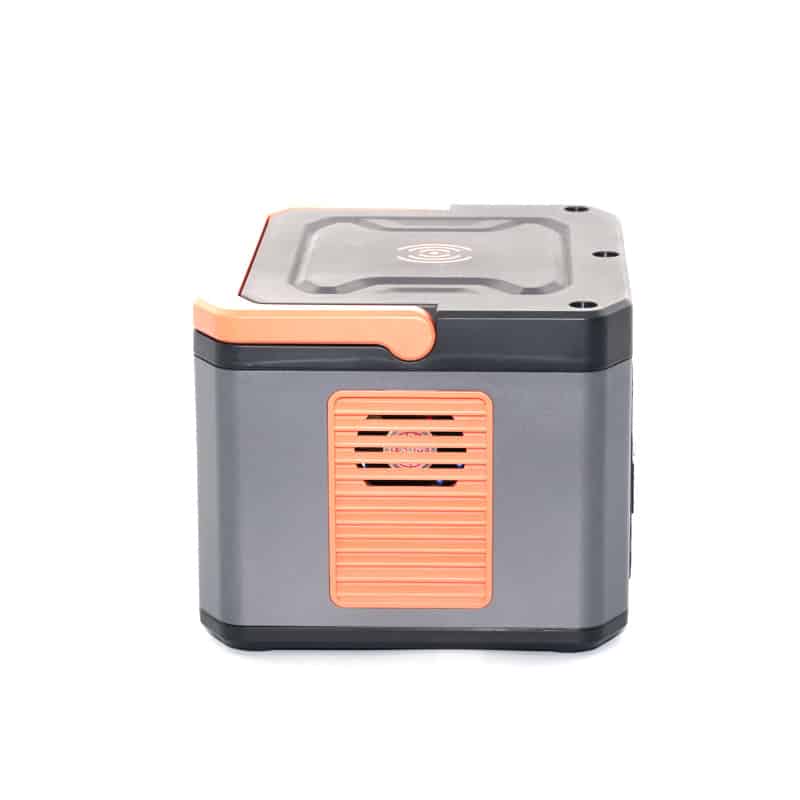

Portable power station 500W With Pure Sine Wave Outdoor emergency solar power station generator Various voltage outputs such as AC 110V /220V, DC 5V/12V.
|

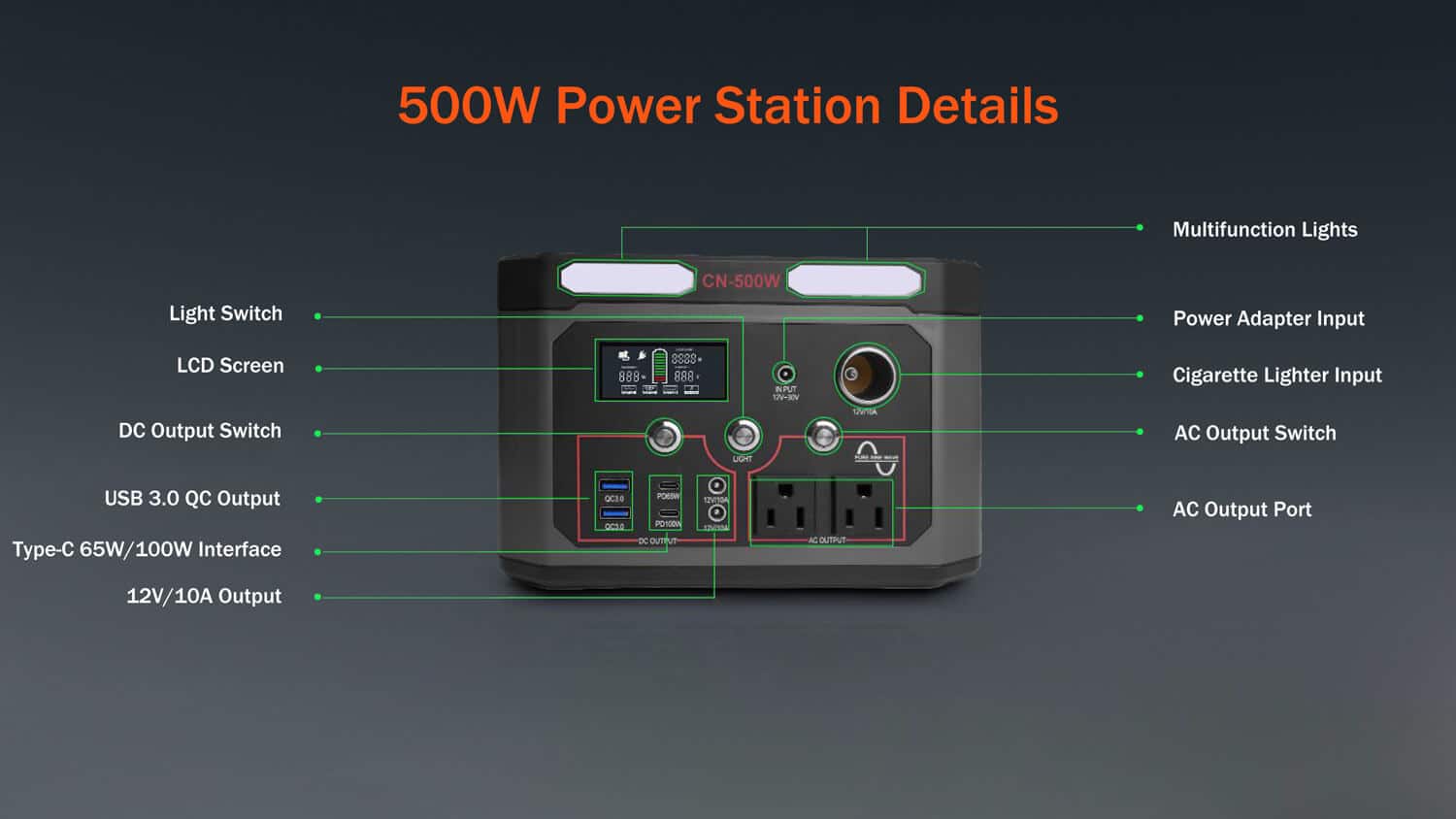

Key Features
|
|
1.Convenient, compact and highly mobile;
|
|
2.Support five charging methods: TYPE-C 65W, TYPE-C 100W, photovoltaic, car cigarette lighter, adapter, and interface;
|
|
3. Support TYPE-C and adapter superimposed charging;
|
|
4.Support AC and DC charging and discharging functions;
|
|
5.Various voltage outputs such as AC 110V or 220V, DC 5V/12V;
|
|
6.High-performance, high-safety, high-power (21700) lithium-ion lithium battery;
|
|
7.System protection functions such as undervoltage, overcurrent, overtemperature, short circuit, overcharge, overdischarge, etc.;
|
|
8.Use LED screen to display remaining power, voltage, input/output power and various function indications;
|
|
9.Support QC3.0, Type-c, fast charging function;
|
|
10. Equipped with bi-directional Type-c 65W and bi-directional Type-c 100W;
|
|
EMC Design Specification
|
|
|
EMI Test Standard
|
|
|
China 3C: GB9254-2008;
|
CE certification: EN55022 EN55032 CLASS B
|
|
US FCC: FCC PART15 Class B;
|
Japan PSE: J55022(H22)
|
| Physical parameters | Input & Output | ||||
| Size | 224*190*156mm | Adapter | DC 15V/3A | ||
| Weight | 5.5kg | Car Cigarette Input | 12V-30V | ||
| Shell | PC+ABS | DC Output | 12V/10AMAX (X3) | ||
| Battery | Ternary lithium | USB Output | QC3.0 (X2) | ||
| Capacity | 129.600mAH(479.52WH) | Type-C1 | PD65W-BIDIRECTIONAL | ||
| POWER | Type-C2 | PD100W-BIDIRECTIONAL | |||
| Rated | 500W | AC Output | 100V/60Hz,220V/50Hz,300W | ||
| Peak | 1000W | LED light | SOS+Flash | ||
| Waveform | Pure sine wave | ||||
| Solar Charging | 80W-PWM + IC (Adjustment) | ||||
