Product Main Features

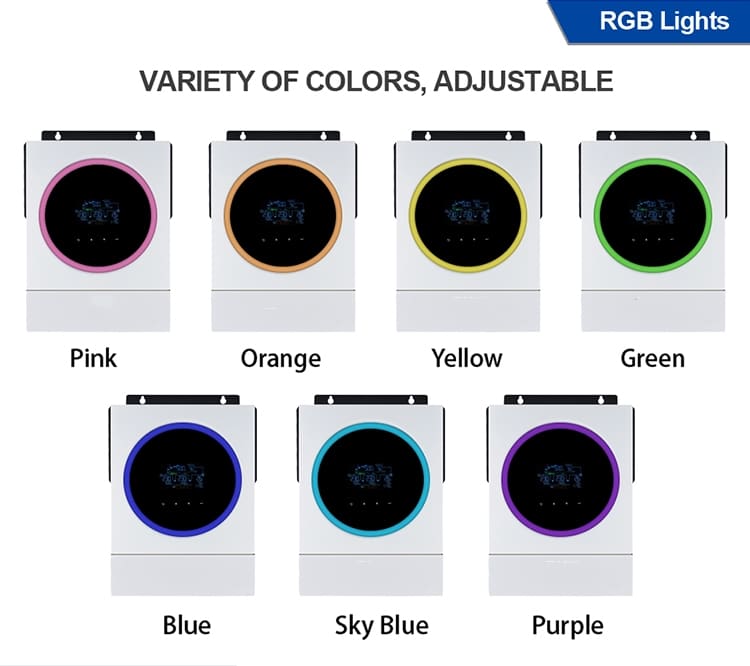

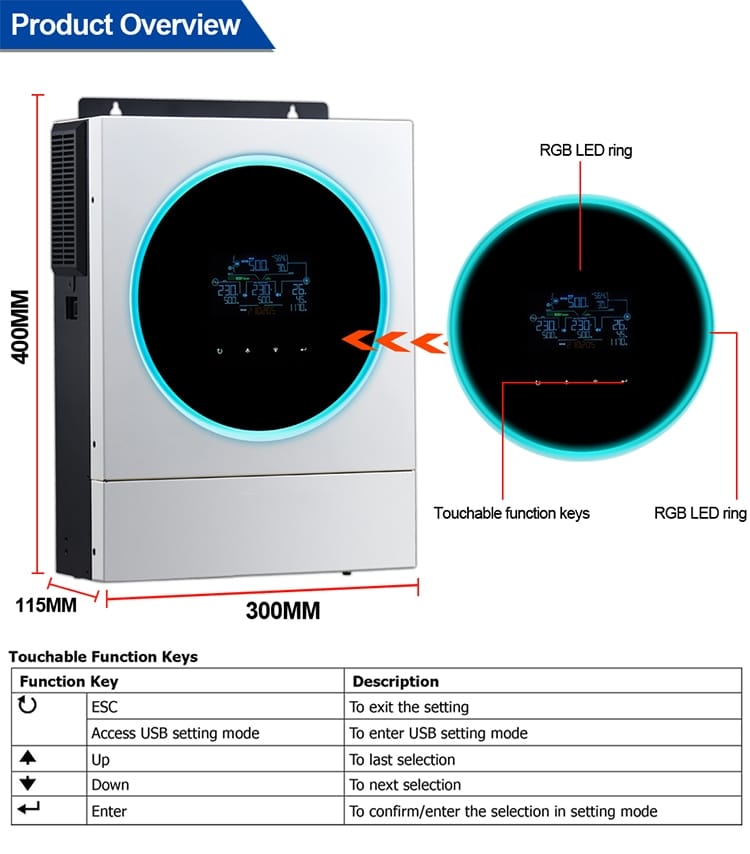

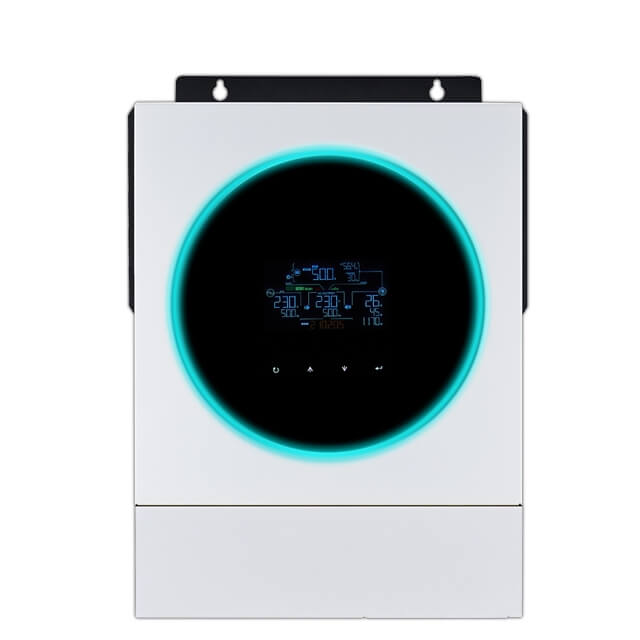

Customizable status LED ring with RGB lights
· Touchable button with 4.3″ colored LCD
·Built-in Wifi for mobile monitoring (App is available)
·Supports USB On-the-Go function
·Data log events stored in the inverter
· Reserved communication port (RS485, CAN-BUS or RS232) for BMS
· Battery independent design
· Battery equalization extends lifecycle
·User-friendly LCD operation
·Enhanced charging power
·Built-in anti-dust kit
· Touchable button with 4.3″ colored LCD
·Built-in Wifi for mobile monitoring (App is available)
·Supports USB On-the-Go function
·Data log events stored in the inverter
· Reserved communication port (RS485, CAN-BUS or RS232) for BMS
· Battery independent design
· Battery equalization extends lifecycle
·User-friendly LCD operation
·Enhanced charging power
·Built-in anti-dust kit
|
MODEL
|
SMV IV 3600-24
|
SMV IV 5600-48
|
|
Rated Power
|
3600VA/3600W
|
5600VA/5600W
|
|
INPUT
|
||
|
Voltage
|
230 VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
|
OUTPUT
|
||
|
AC Voltage Regulation (Batty. Mode)
|
230 VAC ± 5%
|
|
|
Surge Power
|
7200VA
|
11200VA
|
|
Efficiency(Peak)
|
90% ~ 93%
|
|
|
Transfer Time
|
15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
|
|
|
Waveform
|
Pure sine wave
|
|
|

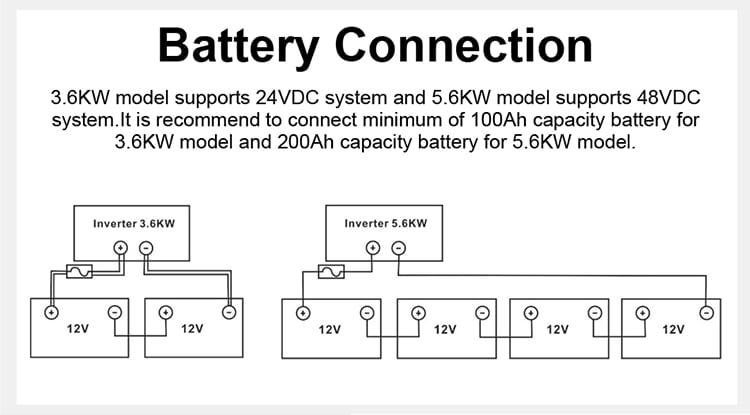

BATTERY
|
||
|
Battery Voltage
|
24 VDC
|
48 VDC
|
|
Floating Charge Voltage
|
27 VDC
|
54 VDC
|
|
Overcharge Protection
|
33 VDC
|
63 VDC
|
|
SOLAR CHARGER & AC CHARGER
|
||
|
Solar Charger Type
|
MPPT
|
MPPT
|
|
Maximum PV Array Power
|
4000 W
|
6000 W
|
|
MPPT Range @ Operating Voltage
|
120 ~ 450 VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
500 VDC
|
|
|
Maxmum Solar Charge Current
|
120 A
|
120 A
|
|
Maximum AC Charge Current
|
100 A
|
100 A
|
|
Maximum Charge Current
|
120 A
|
120 A
|
|
PHYSICAL
|
||
|
Dimension, D x W x H (mm)
|
115 x 300 x 400
|
|
|

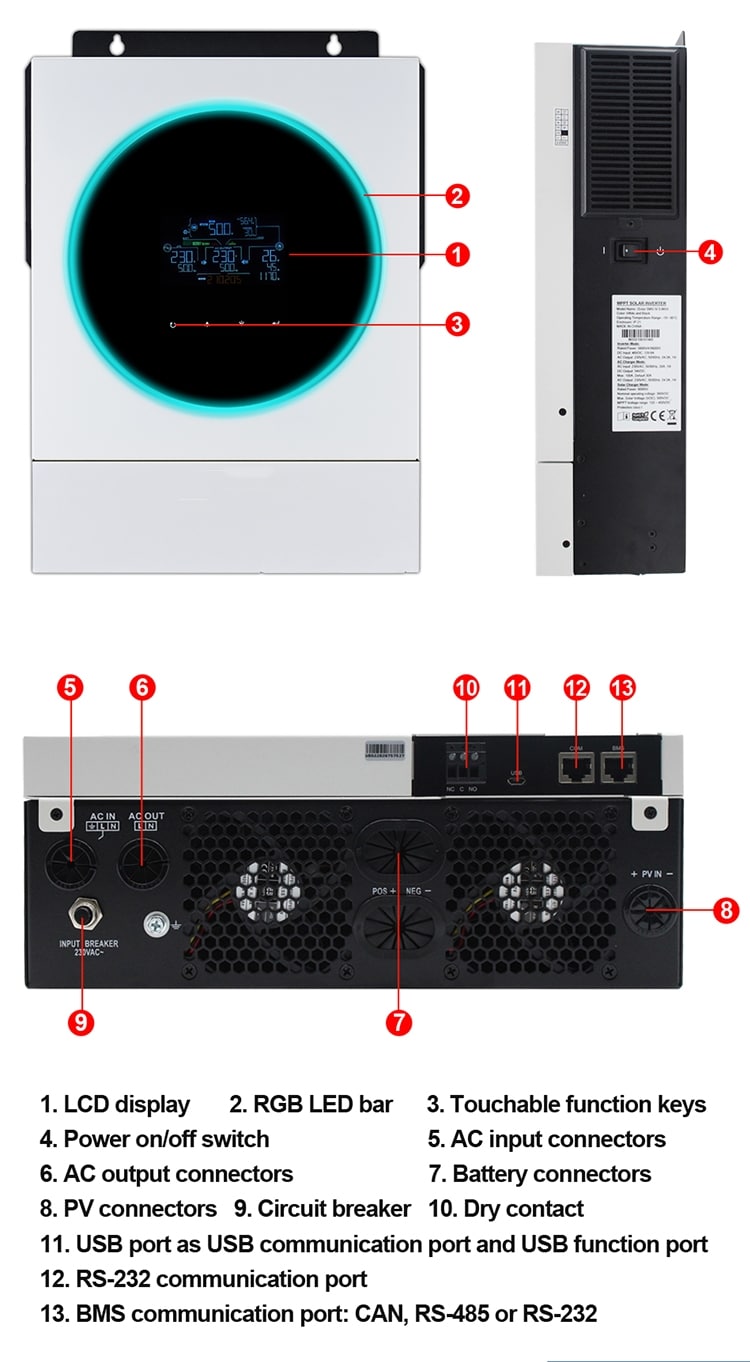

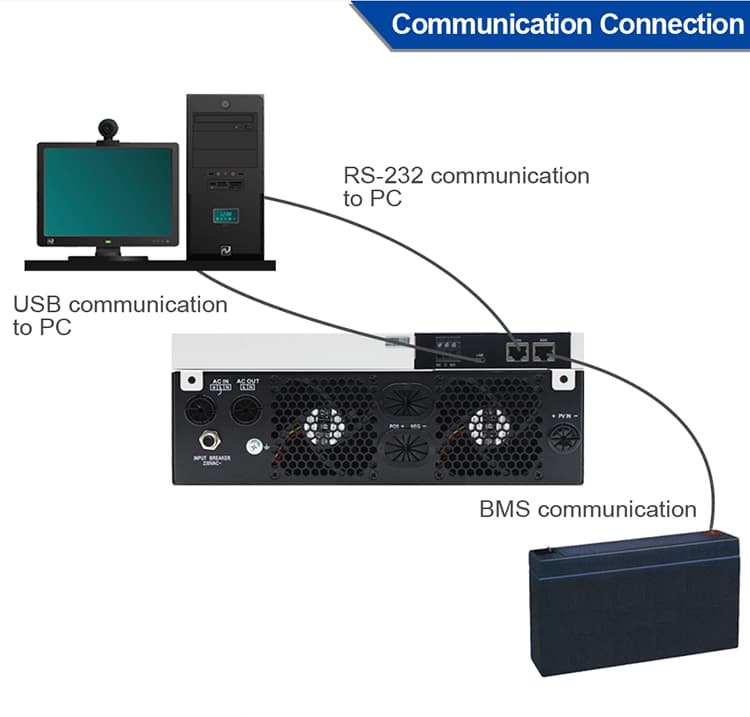

Communication Interface
|
USB/RS232/RS485/WiFi/Dry-contact
|
|
