Battery Parameters
|
||
|
Rated energy capacity
|
5KWH
|
|
|
Battery type
|
Lithium iron phosphate(LifePO4)
|
|
|
Cycle
|
6000 cycles(80%DOD,25°C)
|
|
|
Battery Working volate
|
32.5-54.3V
|
|
|
Layers
|
2
|
|
|
PV parameters
|
||
|
Charging Current
|
100A
|
|
|
Discharging Current
|
100A
|
|
|
PV Input Power
|
5.12KW
|
|
|
MPPT voltage range
|
120V-450Vdc
|
|
|
PV voltage range
|
120V-450vdc
|
|
|
Installation method
|
Floor/removable
|
|
|
System Parameters
|
||
|

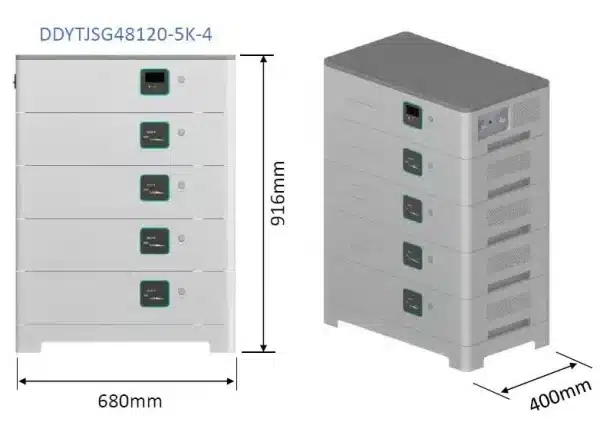

Product size(L*D*H)
|
680*400*430mm
|
|
|
Package size(L*D*H)
|
780*480*510mm
|
|
|
Net weight(including battery)
|
80KG
|
|
|
Gross weight(including battery)
|
90KG
|
|
|
PV input current
|
22A
|
|
|
Operating temperature range
|
Charging:0~45°C Discharging:-30~55°C
|
|
|
Maximum charging current
|
60A
|
|
|
AC input voltage
|
220V/230Vdc
|
|
|
Conversion time(inversion)
|
10ms
|
|
|
AC output power
|
5KW
|
|
|
AC output voltage
|
220Vac
|
|
|
AC output frequency
|
50/60Hz
|
|
|
Communication Port
|
USB/RS485/WIFI/Bluetooth
|
|
|
IP grade
|
IP21(Indoor)
|
|
|
Cooling method
|
Convection and fan coolling
|
|
|
Safety certificate
|
CE,RCM,UN383
|
|
|
Design life
|
10 years
|
|
Features
1.Advanced BMS with current limiting function;
2.Long cycle life and service life;
3.Compatible with most inverters and chargers;
4.Low self discharge;
4.Low self discharge;
5.High energy intensity and conversion efficiency;
6.Easy wall-mounted installation;
7.Solid handles at both sides for carrying and moving;
8.Excellent high temperature performance;
9.Overcharge,over discharge and over temperature protection;
10.More compact volume and lighter weight;
11.Customization accepted;
