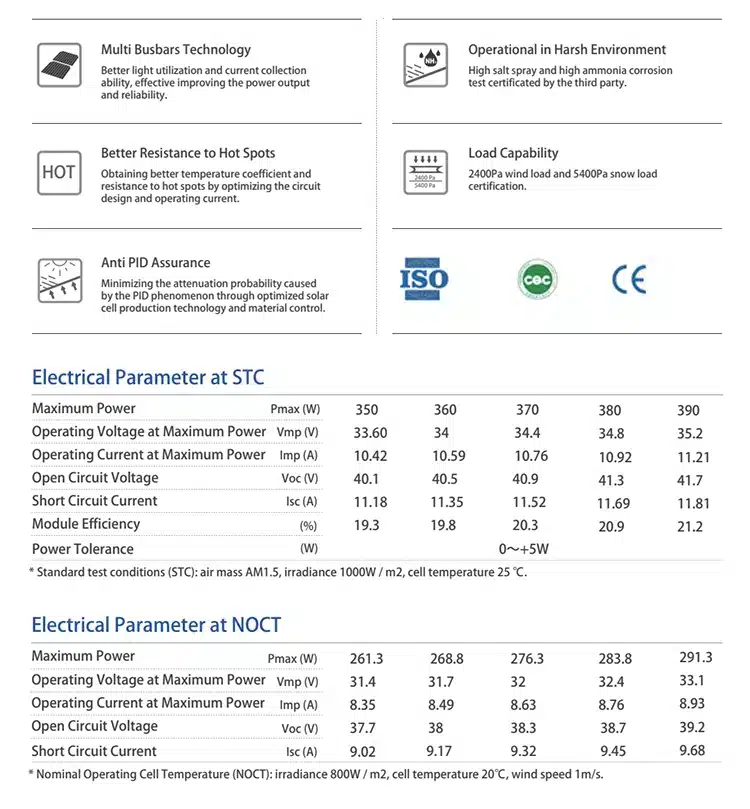

Product Description
|
Maximum Power
|
Pmax (W)
|
400
|
405
|
410
|
415
|
420
|
|
Operating Voltage at Maximum Power
|
Vmp (V)
|
37.62
|
37.77
|
37.92
|
38.07
|
38.22
|
|
Operating Current at Maximum Power
|
Imp (A)
|
10.63
|
10.70
|
10.77
|
10.84
|
10.91
|
|
Open Circuit Voltage
|
Voc (V)
|
46.27
|
46.42
|
46.57
|
46.72
|
46.87
|
|
Short Circuit Current
|
Isc (A)
|
12.44
|
12.51
|
12.58
|
12.65
|
12.72
|
|
Module Efficiency
|
(W)
|
20.4
|
20.6
|
20.8
|
21.0
|
21.2
|
|
Power Tolerance
|
(%)
|
0~+5W
|
||||
|
Electrical Parameter at NOCT
|
||||||
|
Maximum Power
|
Pmax (W)
|
303
|
307
|
311
|
314
|
318
|
|
Operating Voltage at Maximum Power
|
Vmp (V)
|
35.66
|
35.80
|
35.94
|
36.09
|
36.23
|
|
Operating Current at Maximum Power
|
Imp (A)
|
8.61
|
8.66
|
8.72
|
8.78
|
8.84
|
|
Open Circuit Voltage
|
Voc (V)
|
43.49
|
43.63
|
43.77
|
43.91
|
44.05
|
|
Short Circuit Current
|
Isc (A)
|
9.93
|
9.98
|
10.04
|
10.09
|
10.14
|
|

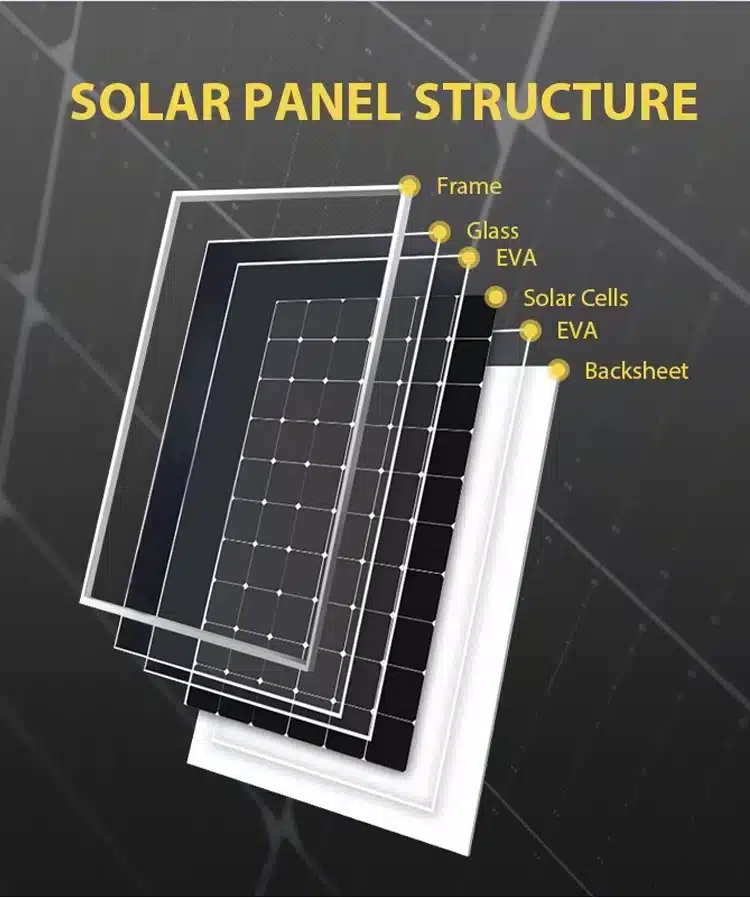

Material Data
|
||||||
|
Cell Type
|
166Monocrystalline
|
|||||
|
Number of Cells
|
132 pcs(6×22)
|
|||||
|

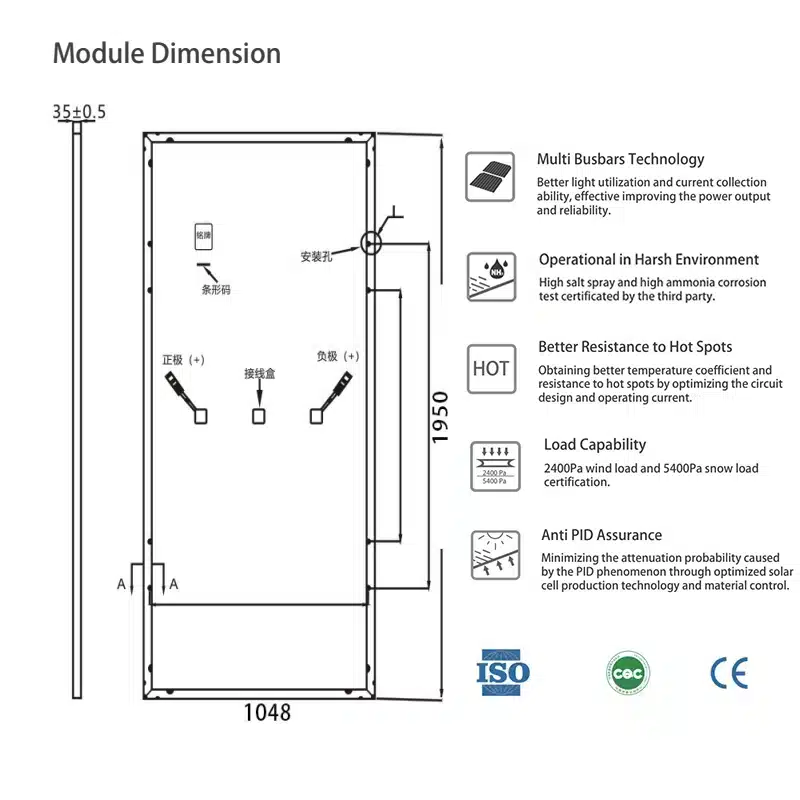

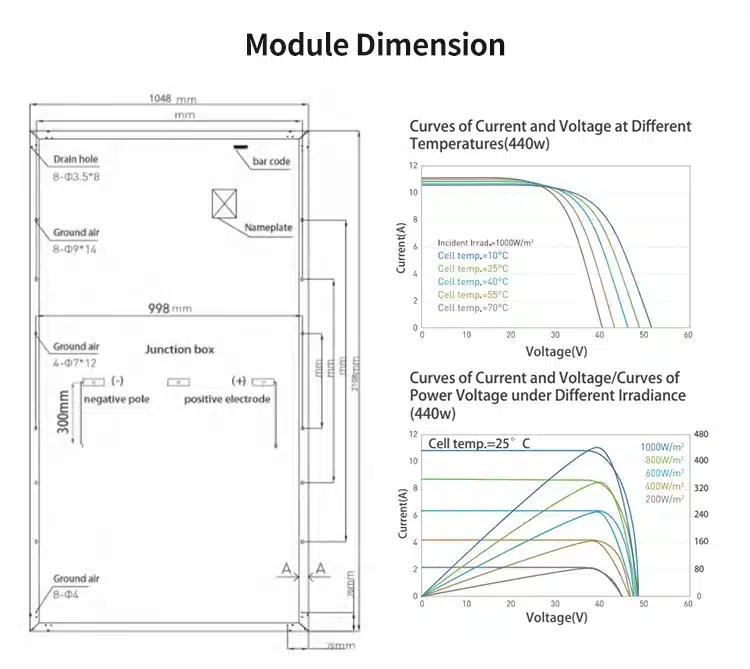

Module Dimension
|
1950×1048×35mm
|
|||||
|
Weight
|
21.5kg
|
|||||
|
Glass
|
3.2mm high transmittance, anti-reflection coated tempered glass
|
|||||
|
Back Sheet
|
White
|
|||||
|
Frame
|
Anodized aluminum alloy
|
|||||
|
Junction Box
|
Protection degree IP68
|
|||||
|
Cable
|
4mm, 240mm long PV cable
|
|||||
|
Quantity of diodes
|
3
|
|||||
|
Wind Load/Snow Load
|
2400pa / 5400pa
|
|||||
|
Connector
|
Compatible MC4 connector
|
|||||
