8.8/13.2kVA High Voltage Hybrid Solar Energy System
|
|
|
Battery
|
|
|
Battery Type
|
High Voltage Stackable LiFePO4 Battery
|
|
Battery Voltage
|
153.6V-307.2V
|
|
Battery Rated Cpacity
|
10.24kWh-15.36kWh/12.8kWh-15.36kWh
|
|
Battery system Capacity
|
10.24kWh-245.76kWh/12.8kWh245.76kWh
|
|
Battery Cycle
|
6000 Cycles
|
|
Inverter
|
|
|
Rated Power
|
8.8kVA/13.2kVA
|
|
Output Voltage
|
400V/360~440V
|
|
Max PV Charge Current
|
12.5A
|
|
Max PV Input Power
|
10.4kW/15.6kW
|
|
Mppt Operating Voltage
|
180V-850V
|
|
MPPT efficiency
|
99.50%
|
|
Battery charge /discharge efficiency
|
96.6%/96.8%
|
|
Solar Panel
|
|
|
Peak Power
|
200W
|
|
Open Circuit Voltage
|
20V
|
|
Working Voltage
|
18V
|
|
Solar Energy Conversion Rate
|
≥22%
|
|
Connection Method
|
26S2P/39S2P
|
|
Solar Panel System Peak Power
|
10.4kW/15.6kW
|

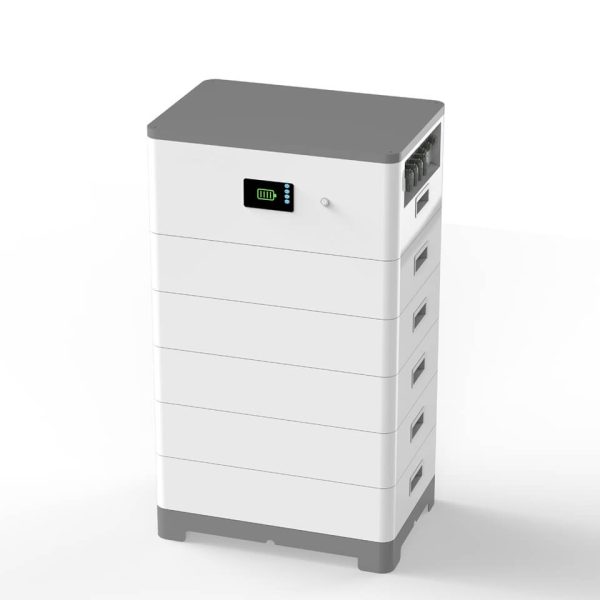

| High Voltage Stackable Battery
1.Intelligent battery management system 2.Modular structure for easy installation 3.LED display the parameters of the equipment in real time 4.Supports up to 16 clusters in parallel 5.Support a variety of communication protocols, support RS485, RS232, CAN etc
|
 |
 |

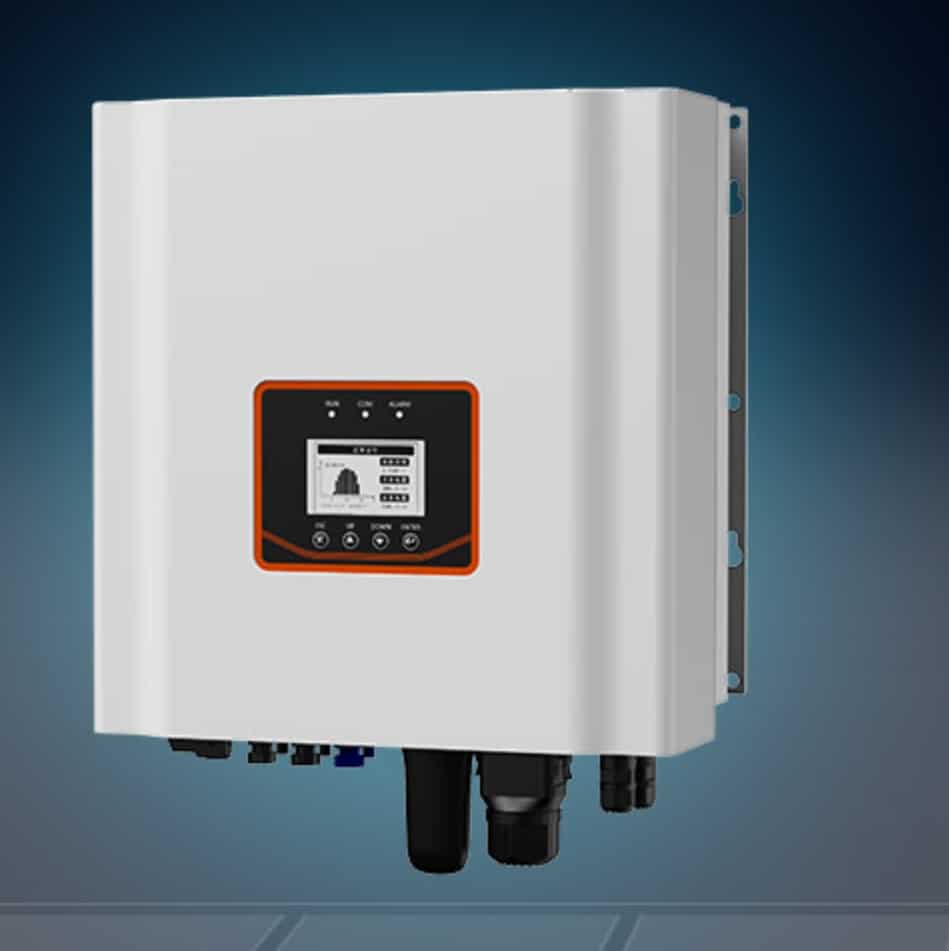

Three phase ESS hybrid inverter
1.Battery reverse connection protection, anti-power control function 2.Input power source priority can be set by users 3.Support full power discharge, automatic management of battery charge and discharge 4.IP65 protection, low noise < 35dB 5.IEC62109,CE,VDE4105,EN50549
|

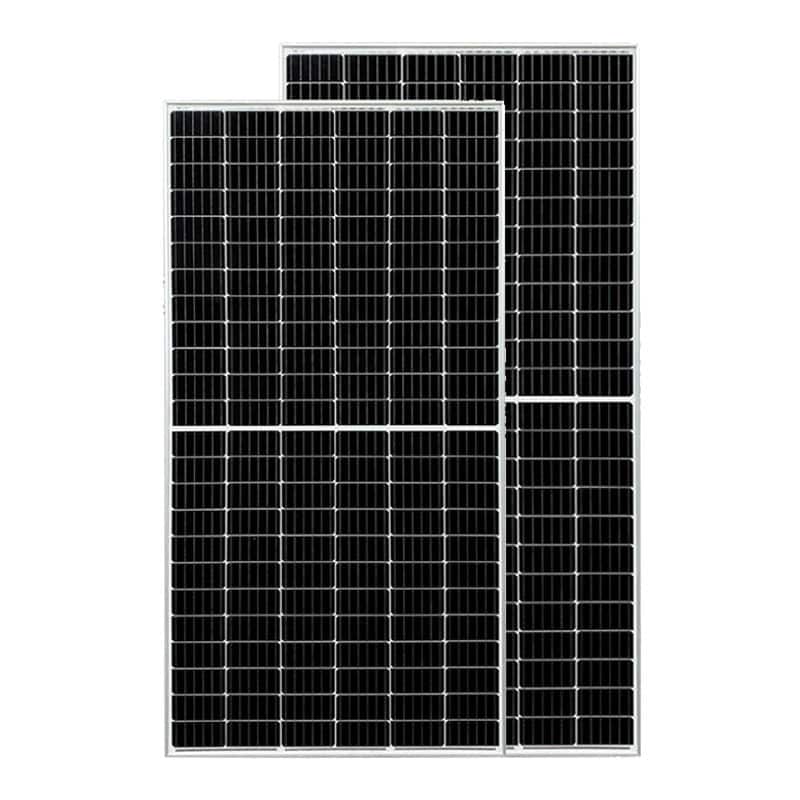

| Solar panels1.IP67 protection
2.Use PPF process to effectively prevent back plane aging 3.High transparency tempered glass 4.Thick aluminum alloy frame
|
 |
