We are capable of customization based on our customers’ requirements.

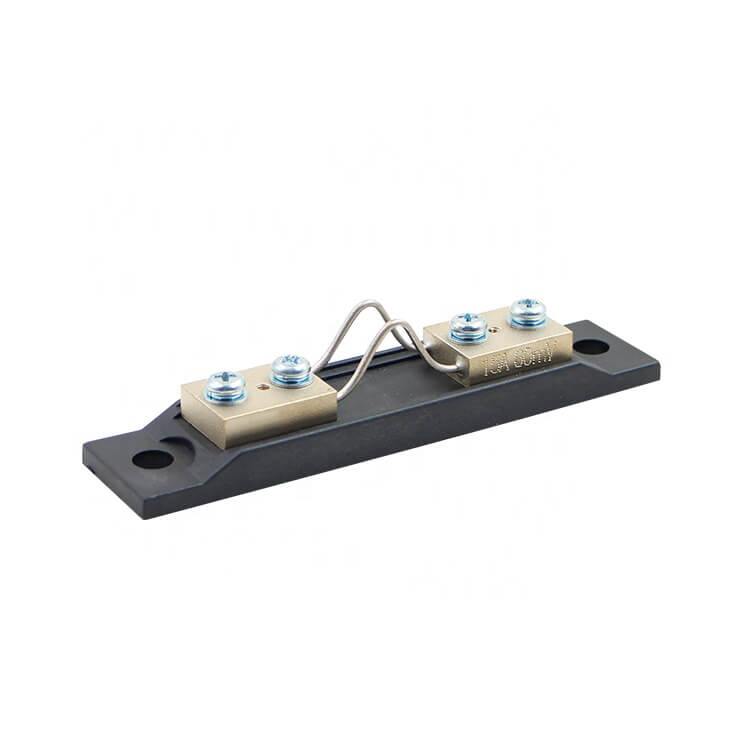

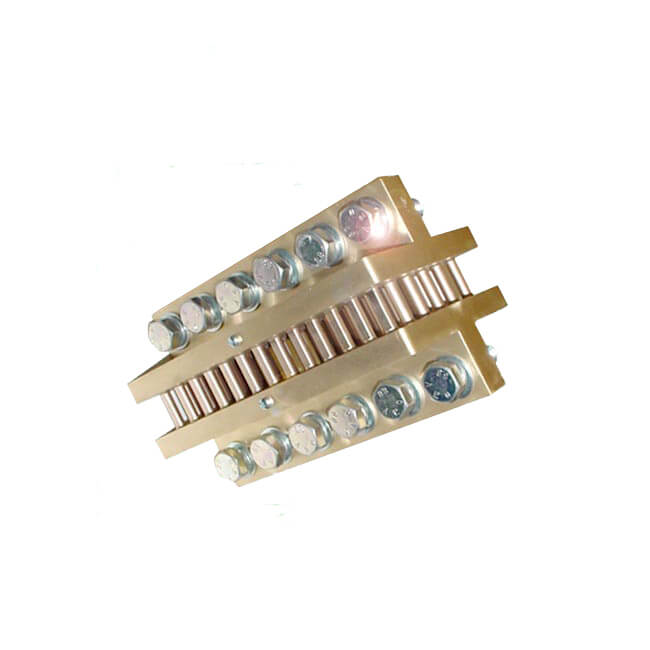

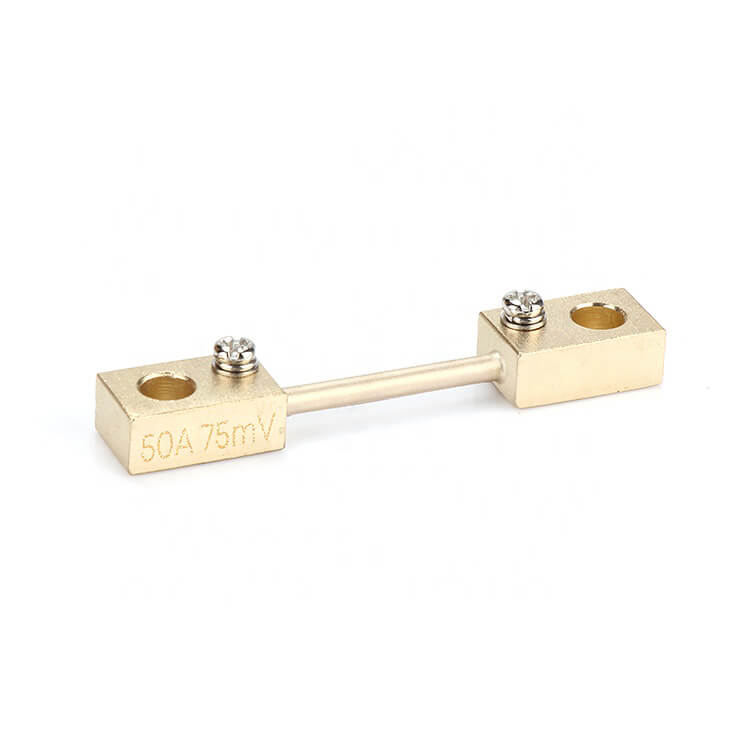

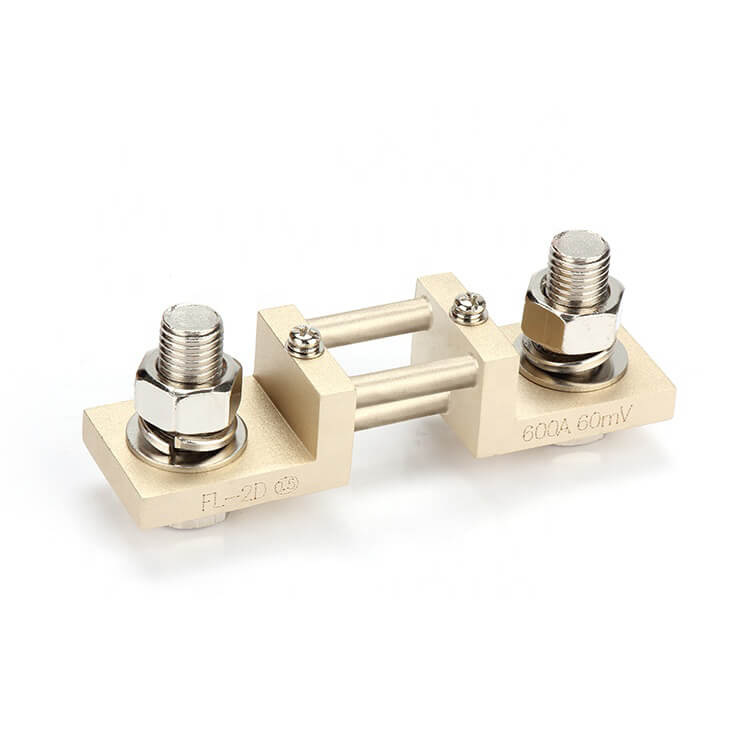

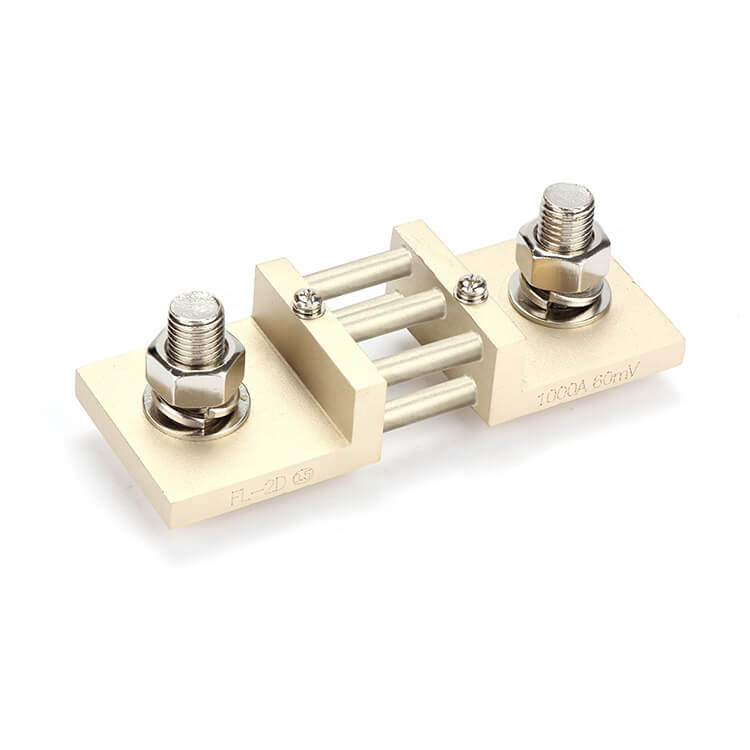

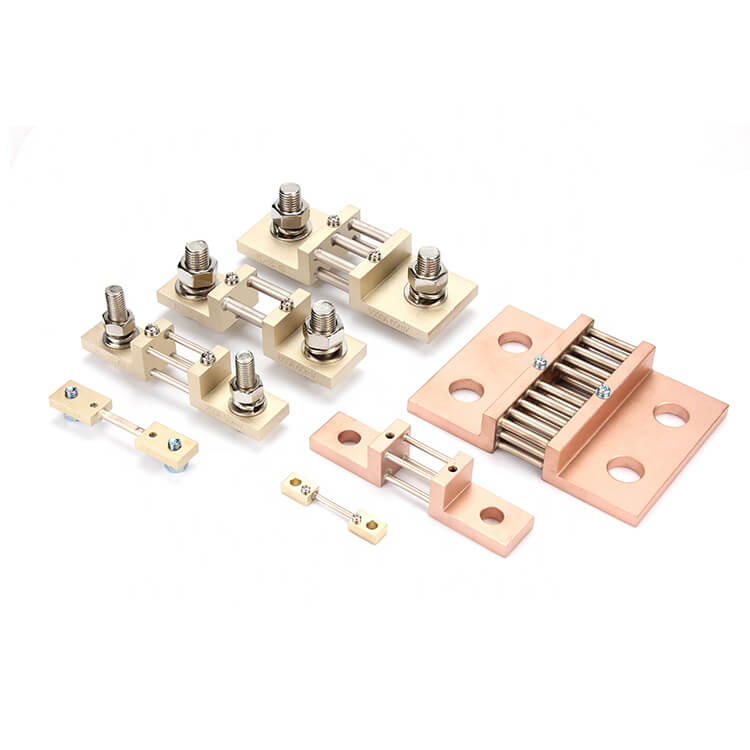

The fixed setpoint shunt is a type of external shunt suitable for directly measuring the DC current below 10kA on the analog display instrument used to expand the DC current measurement range, or as a current in the sequential circuit. The standard resistor used for sampling can be regarded as the analog signal of the primary current for measurement.
| Color | Yellow & Black |
| Current Rating | Customizable |
| Operating Temperature | -40°C ~+60°C |
| Voltage Drop | 50mV/60mV/75mV/100mV(can be customized) |
| Accuracy Class | 0.5 |
| Material | Copper + Manganin |
| Overload Capacity | 120% Of Rated Current For 2H |
| Function | Are Used To Multiply The Measuring Range Of Current Of Measuring Instruments. |
